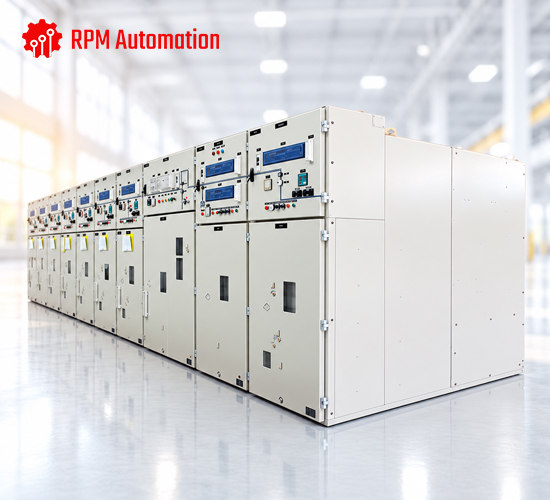

Electric Control Panel
| Specification | Value |
| System Voltage | 415V AC (3-phase) or 230V AC (single-phase), 50 Hz depending on the local utility. |
| Control Voltage | 24V DC (via SMPS), 110V AC, or 230V AC for internal logic and relays. |
| Rated Current & Capacity | Sized for full load current (FLC) plus a 20% to 25% safety or future expansion margin. |
| Incomer & Protection Devices | Air Circuit Breakers (ACB), Molded Case Circuit Breakers (MCCB), or Miniature Circuit Breakers (MCB). |
| Short-Circuit Withstand Capacity (SCWC) | Rated in kA (e.g., 25kA, 35kA, or 50kA) backed by type-test certificates. |
| Material | CRCA Mild Steel (1.6 mm to 2.0 mm thick), Stainless Steel (SS304/SS316), or Polycarbonate/FRP for corrosive sites. |
| Ingress Protection (IP) Rating | IP54/IP55 for dust and water resistance indoors, or IP65 for outdoor/harsh weather installation. |
